Aerotech Beacon


LED Strobe & Rotate Beacon
Vision X Europe UF32
Features
  • LEDs: 9*5 watt (45W) hight power LEDs
  • Strobe & Rotate fonction
  • Housing Material: Polycarbonate
  • EMC/EMI Approval: CISPR25-Class 3
  • Dimensions: 68,4/134,7/133,8mm (low profile)
  • Weight: 0.33 kg
  • Voltage: 10-33V DC
  • Amperage: 0,6A(Rotate)~1.4A(Flash)@12V DC
  • Vibration Tests: IEC 60068-2-64
  • Certifications: ECE R10, ECE R65, RoHS, ISO 16750-3


  • BRIGHTER & MORE EFFICIENT THAN HALOGEN BEACONS.
    AeroTech®, the latest LED strobe technology from Vision X Lighting. We've reinvented the traditional round strobe and created a powerful new warning light with one goal in mind: to keep workers safe on site. AeroTech® are the brightest, most visibles strobes of their size. With an innovative design and class leading features, Aerotech® is a revolution in the LED strobe market.

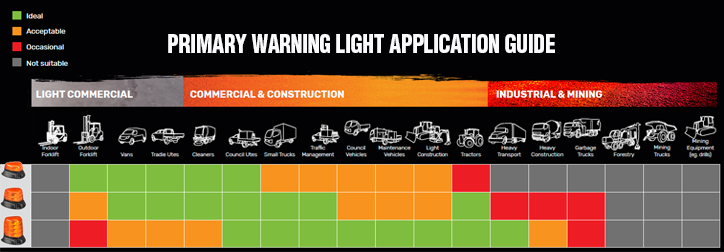

    Aerotech LED Beacons Usage Guide

    Visibility
    The primary function of a warning light is to be seen. AeroTech's® unique trilobular shape creates a greater horizontal surface area of visible light.* This larger area of illumination translates to better visibility and a safer work site.

    Aerodynamics
    The trilobular shape allows smoother airflow around the strobe, resulting in up to 60% less drag.* The real world benefit of this is less high speed wind noise while driving, compared to round strobes.

    Day/Night Light Sensor
    Because of their extreme brightness, AeroTech® strobes also include an integrated light sensor which automatically switches the strobe between high and low power modes. This ensures the strobe does not dazzle road users or workers at night or in low light conditions. In addition, the AeroTech® range has a switching wire which allows manual day/night selection for increased user flexibility.

    Tested harder for longer.
    AeroTech LED strobes went through exhaustive testing at Vision X's in-house testing facility which has been backed by independent approved and accredited labs. AeroTech's durability testing included thermal shock, vibration (IEC 60068-2-64), mechanical shock, salt spray, IP67 and real world environment tests. We know if a product can last in our hands, then it can last in yours.
    Specifications

    Vision X Europe Optimax Features
    ITEM# LED Color Mount Option Dimensions Weight Wattage
    AERO-600A Amber Flange Mount 69/135/134 mm 0.330 kg 9*5W (45 Watt)
    AERO-606A Amber Flange Mount 90/135/134 mm 0.450 kg 18*5W (90 Watt)
    AERO-612A Amber Flange Mount 130/135/134 mm 0.600 kg 36*1W (36 Watt)
    AERO-602PA Amber Pole Mount 109/135/134 mm 0.390 kg 9*5W (45 Watt)
    AERO-608PA Amber Pole Mount 131/135/134 mm 0.475 kg 18*5W (90 Watt)
    AERO-614PA Amber Pole Mount 171/135/134 mm 0.660 kg 36*1W (36 Watt)
    AERO-604MA Amber Magnetic Mount 95/135/134 mm 0.920 kg 9*5W (45 Watt)
    AERO-610MA Amber Magnetic Mount 116/135/134 mm 1.002 kg 18*5W (90 Watt)
    AERO-616MA Amber Magnetic Mount 156/135/134 mm 1.12 kg 36*1W (36 Watt)
